Vazoo 2

The bookcase you want to assemble requires a few steps that you can easily perform.

START

Przygotuj miejsce do złożenia regału VAZOO 2. Upewnij się, że masz
wystarczająco dużo miejsca dla wygodnego skręcania i powierzchnie z
których będziesz korzystać są czyste. Zalecamy użycie dywanu lub koca na
którym części będą mogły być bezpiecznie składane.

STEP 1

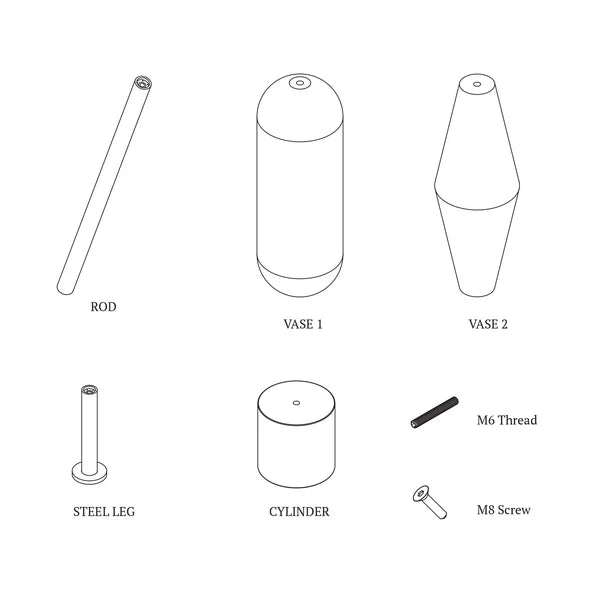

Unpack all parts. Arrange them so that you have an overview of all the parts.

STEP 2

Assembling the VAZOO 2 shelf is very simple. In most cases, you can
assemble our shelf without using additional tools and it should take you
no more than 20 minutes.

STEP 3

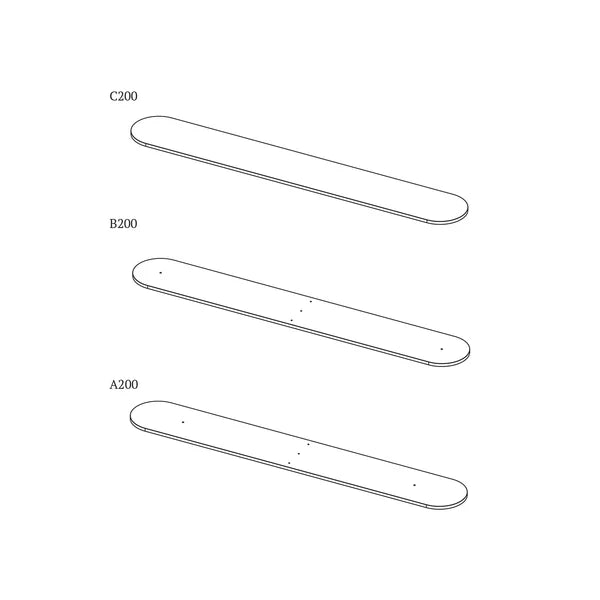

Start with the countertop, which will be the top element of our shelf. On one side, the top is smooth and without holes.

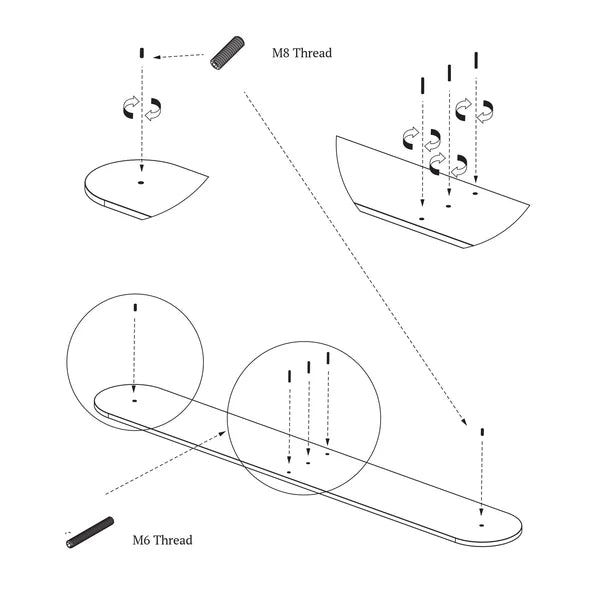

STEP 4

Screw the threaded studs into the appropriate holes. You will need 2pcs.
pins with M8 thread and 3 pcs. pins with M6 thread. Of course, the ones
with a smaller diameter are M6.

STEP 5

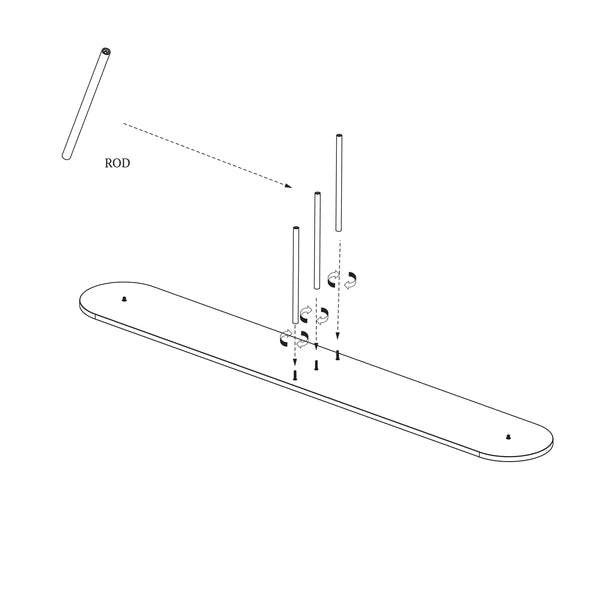

Screw 3 pcs. steel pipes for the protruding threads in the central part of the countertop.

STEP 6

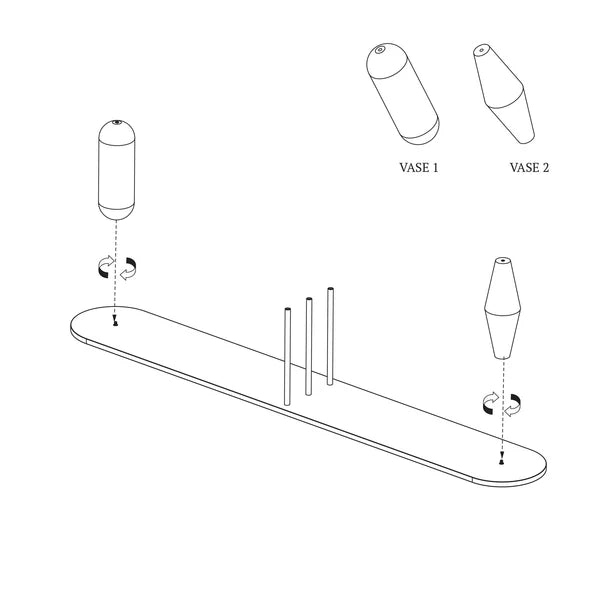

Take two pieces of your choice that you want to be on the highest level
of the shelf and screw them onto the protruding threads. We suggest that
the vases be mixed. This is when the shelf looks the most impressive.

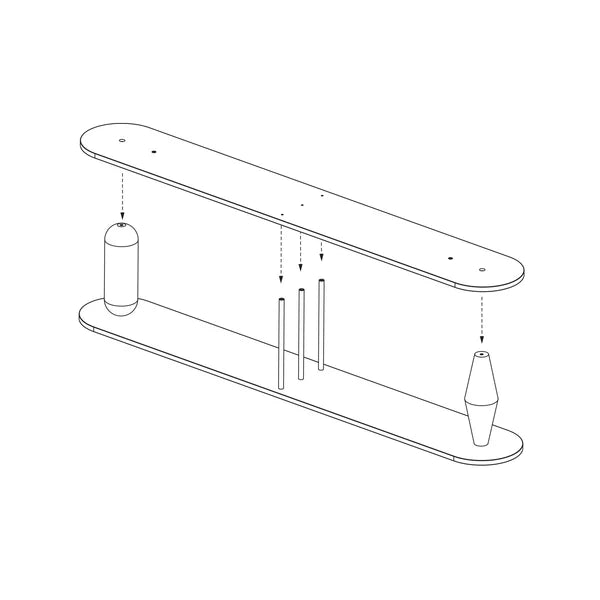

STEP 7

Take another tabletop (middle) and place it on the blocks and protruding bars to fit the holes.

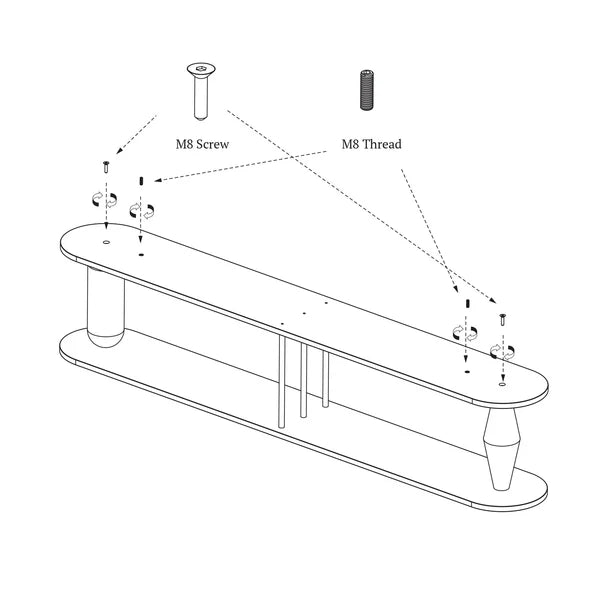

STEP 8

Then, once the countertop is in place, install the screws and threaded studs indicated in the illustration above.

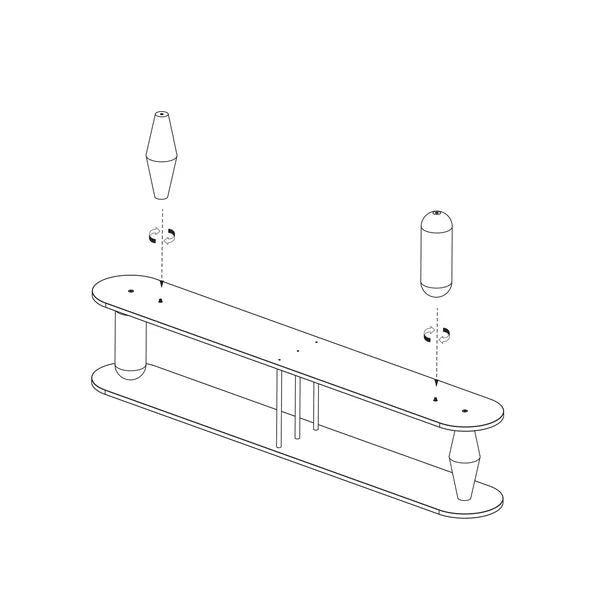

STEP 9

Screw the pieces onto the protruding threads in the indicated place.

STEP 10

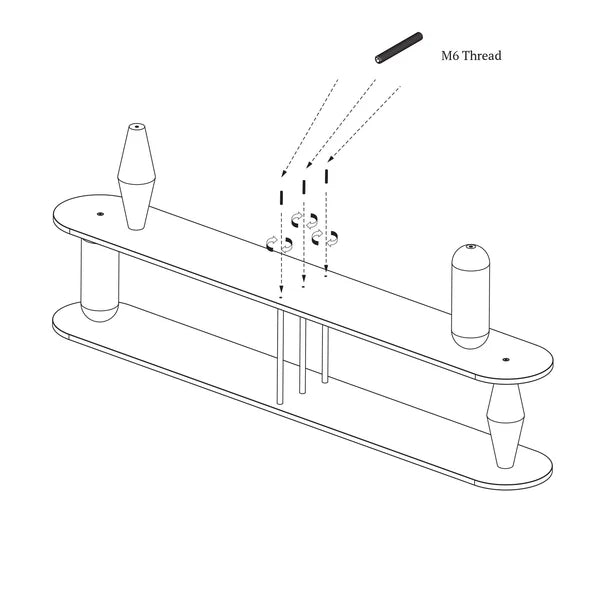

Now prepare the threads for screwing on the next threaded pipes. You
will need three threaded studs for this. Screw them into the holes so
that they stick out at a similar height. Preferably around 10mm-15mm.

STEP 11

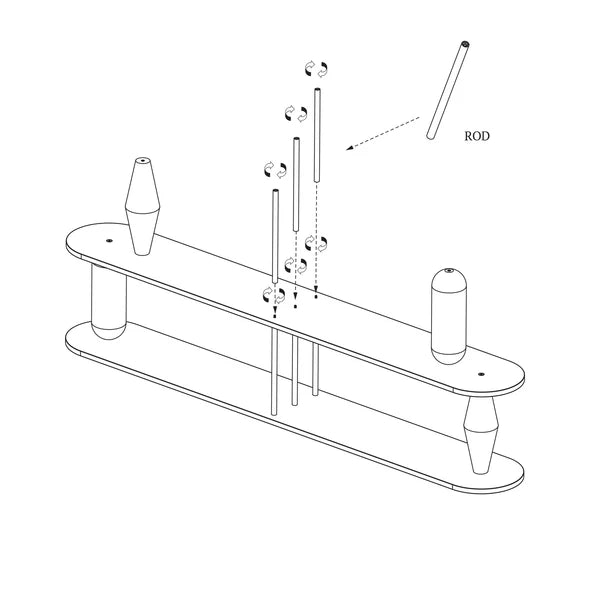

Screw on 3 tubes. for protruding threads.

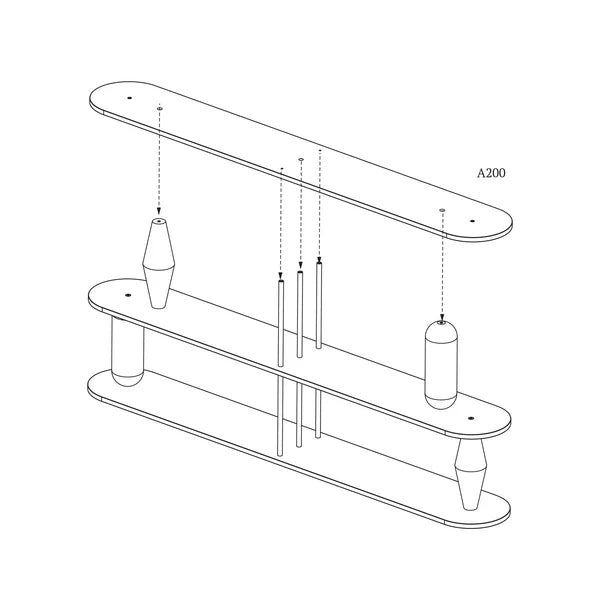

STEP 12

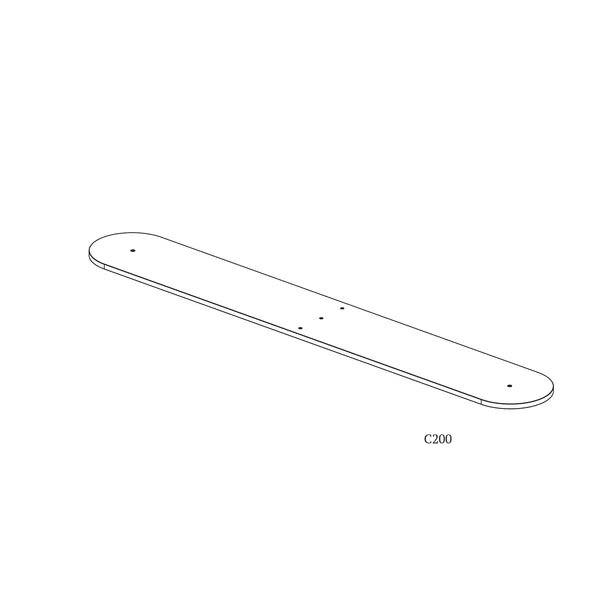

Place the last countertop on the solids in such a way that the holes
match the solids and tubes below. *In the case of a VAZOO shelf with
more shelves, repeat the steps from step 7 to step 11.

STEP 13

Secure the table top with screws. Use two M8 and one M6 screws to screw into the tube.

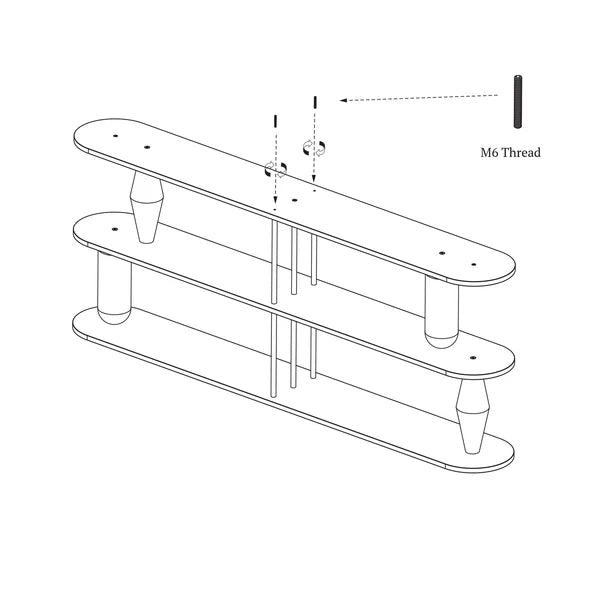

STEP 14

Now it's time for the threaded pins (2 pcs.) which you will screw into
the extreme holes located in the middle of the countertop. We will use
them to screw on the steel legs. Try to ensure that the threads protrude
by about 10-15mm.

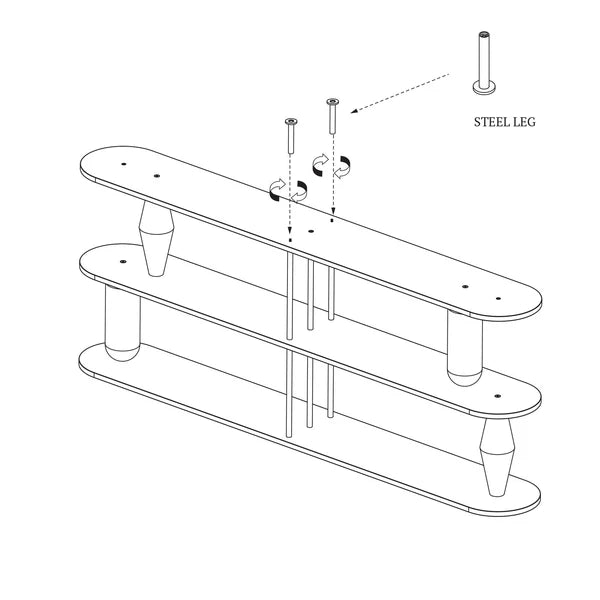

STEP 15

Screw the steel legs onto the protruding threads.

STEP 16

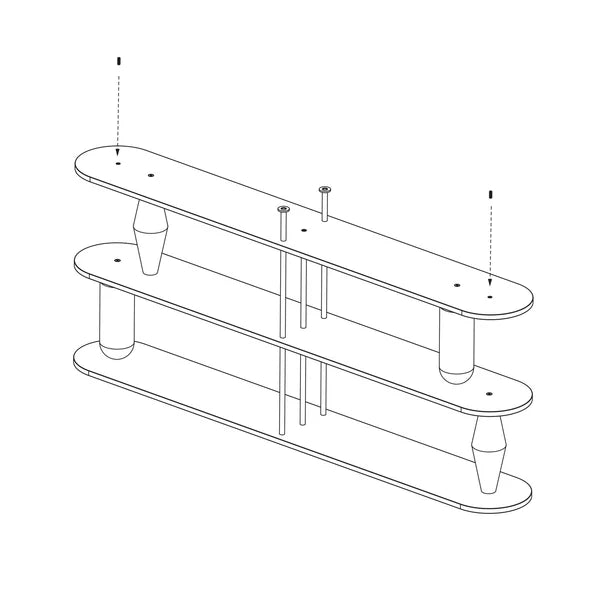

Place the M8 pins remaining in the set in the extreme holes of the table
top. Screw them in so that they stick out by about 10-15mm.

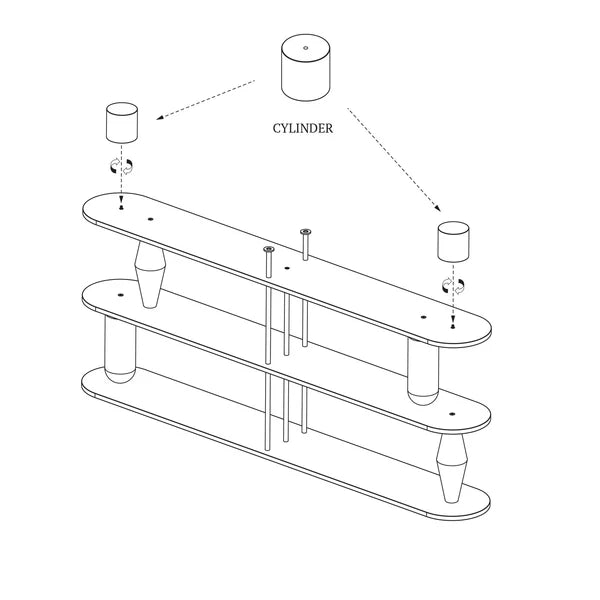

STEP 17

We still need to screw on the wooden cylinders as the end legs of our
shelf. Cylindrical solids have threads embedded on one side. Screw the
shapes onto the protruding pins.

STEP 18

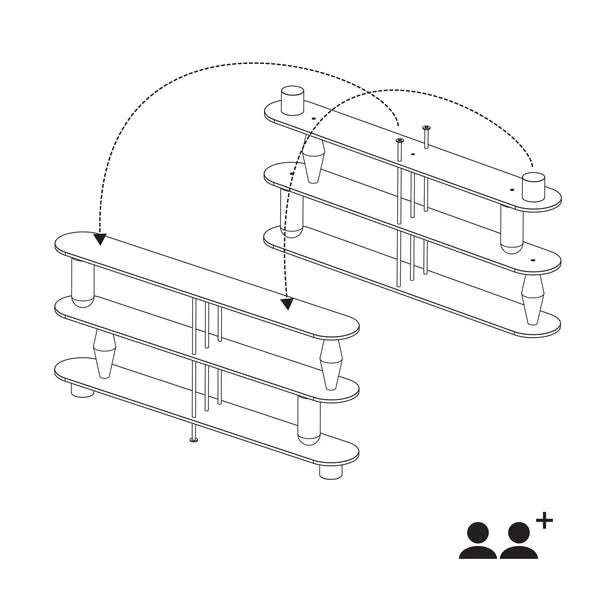

The last step is to rotate the shelf. Be sure to ask someone to help
you. Although the shelf itself is not very heavy, we recommend turning
it with the help of at least 1 additional person. When turning, hold the
countertops to avoid damaging the threaded connections.

STEP 19

The VAZOO 2 shelf is fully assembled. Place it against the wall and
don't forget to attach it to it. The set certainly included fasteners
that you could use to secure the shelf. We recommend doing this. Select
the expansion plug to suit the type of wall and screw the connector to
the countertop in an inconspicuous place from the bottom of the
countertop. Designate the wall mounting locations after placing the
shelf in a suitable place under the wall. After securing it against
tipping over, the shelf is ready for use.
